Accord 40 FXM
Accord 40 FXM
Title:
  • DefaultTitle

$ 72.81

$ 56.01

Please select combo product attributes
The combo subtotal is $,SAVE$

Product Details

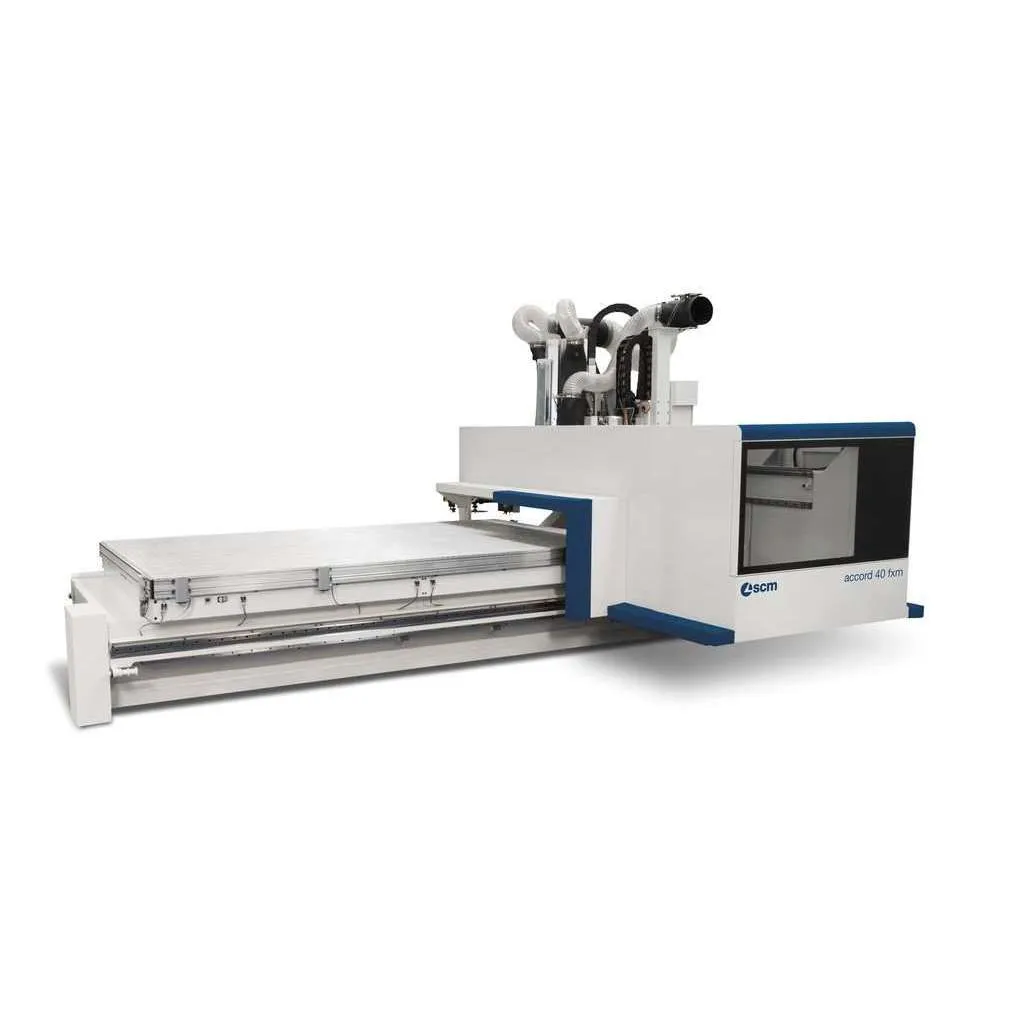

CNC machining centre with mobile gantry structure, for production of high flexibility and regardless of form, which require high standards of accuracy.
Ideal solution for machining panels with nesting technology and machining of plastics, resins or light alloys.

Advantages

HEAVY DUTY PROFILING

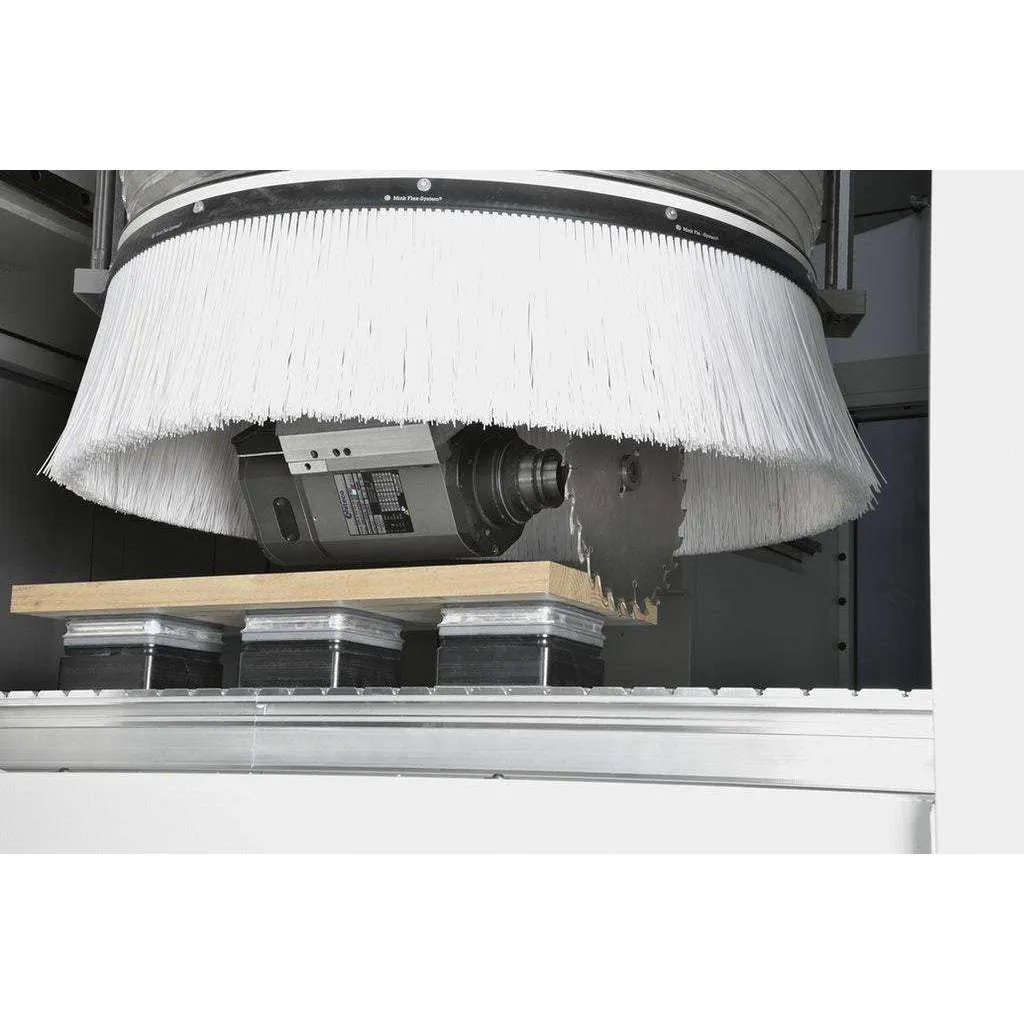

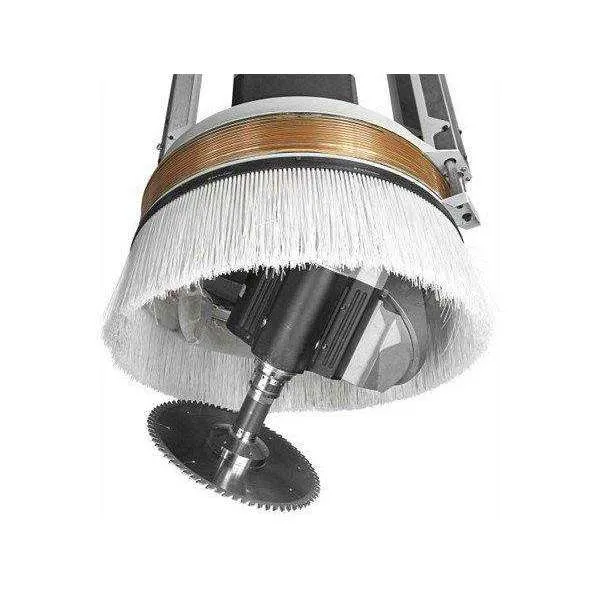

The PRISMA machining heads with 5 interpolating axes are designed for the processing of solid wood.
The ideal solution for windows, doors and stairs.

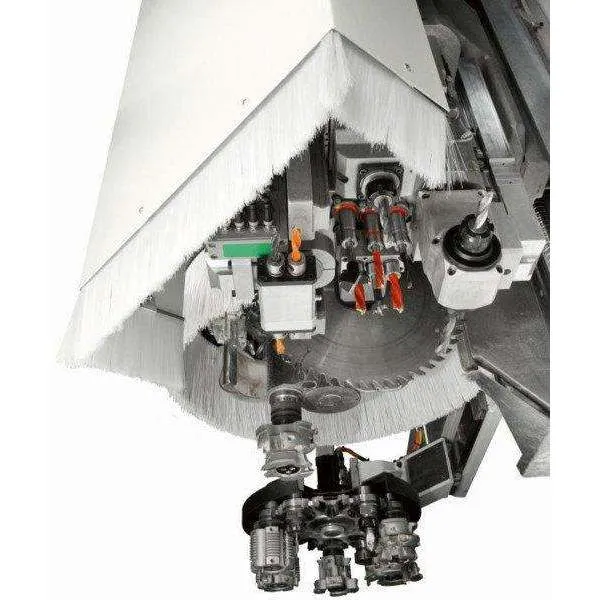

BRC WORKING UNIT
Boring, Routing and Cutting both vertically and horizontally, without needing to tool change.
Fast and efficient, all additional machinings are carried out by this unit that has an independent Z-axis and a dedicated inverter.

RELIABLE TECHNOLOGY

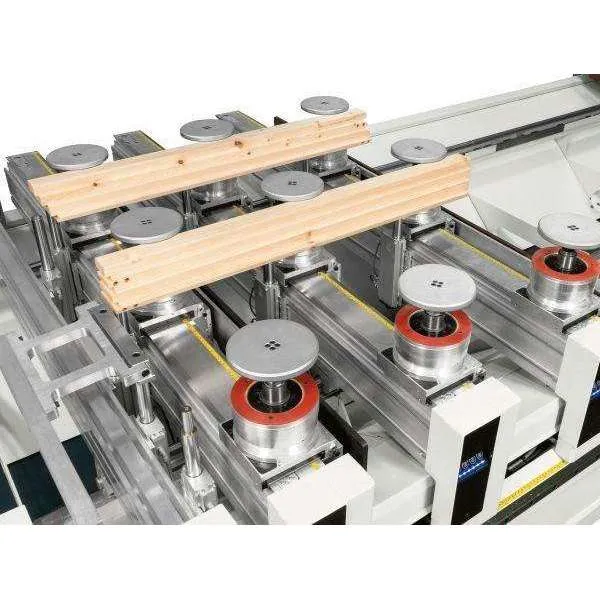

The SCM aluminium multi-function worktable guarantees perfect lasting planarity.
The direct integrated vacuum system allows the optimum work-piece hold down and the T-grooves are ideal for fitting of any type of mechanical locking equipment.

INTELLIGENT PROGRAMMING
Simple and intuitive programming, thanks to the MAESTRO software that includes modules for different applications.


Technical data

accord 40 fxm
Working areas
X-Y-Z axes dimensions mm 3650x1600x350
4970x1600x350
6170x1600x350
3650x2120x350
4970x2120x350
6170x2120x350
Axes
X-Y-Z axes max. speed m/min 90-90-30
Machining head
5 axes electrospindle motor power (max.) kW 17
3/4 axes electrospindle motor power (max.) kW 15
5 axes electrospindle rotation speed (max.) rpm 24000
3/4 axes electrospindle rotation speed (max.) rpm 24000
Drilling unit
Vertical and horizontal spindles (max.) n. 30
Rotation speed rpm 8000
